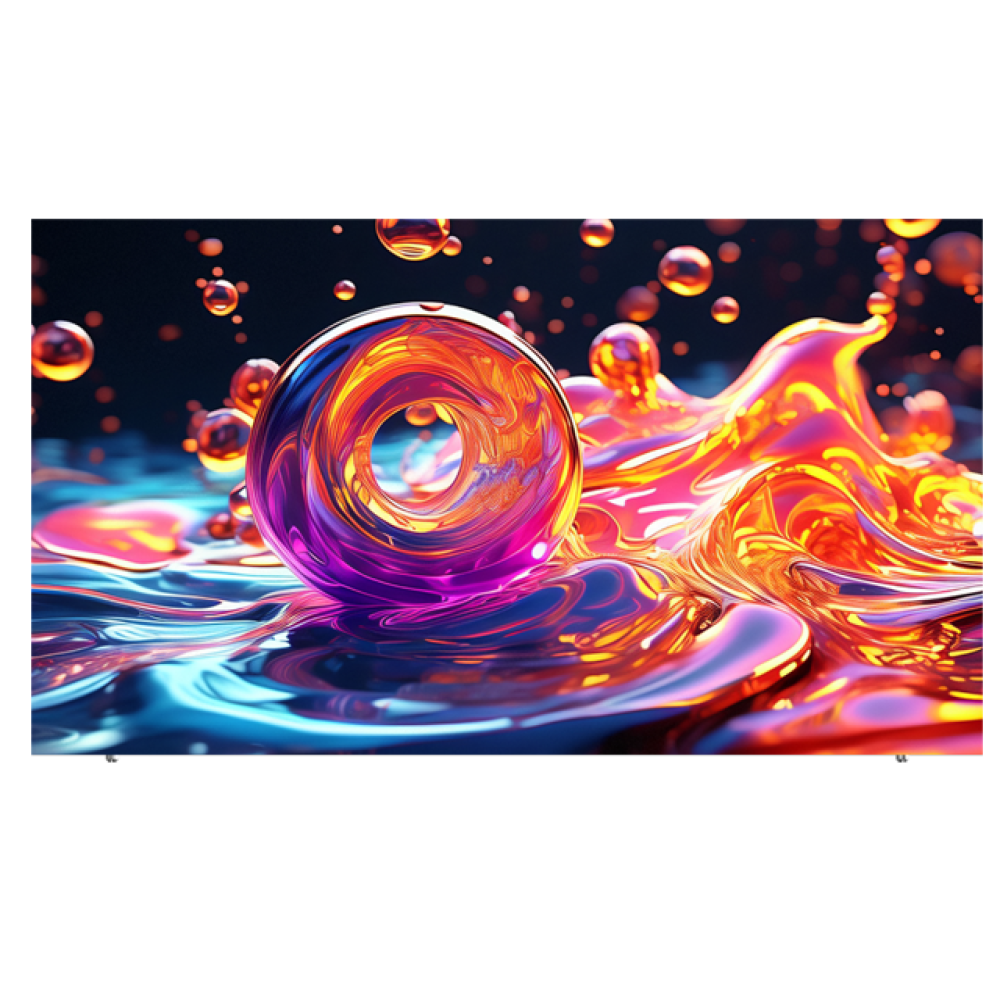

C series 16:9H has the characteristics of seamless, perfect display, long lifetime, fast frame changing speed, high refresh, good uniformity, wide viewing angle, high grayscale, natural color reproduction, etc. It is widely used in command and dispatch center, security monitoring, video conference, exhibition, large stage, convention and exhibition center, indoor stadium, various indoor conference room display area.
Extremely short response time No image tailing or ghosting in nanometre.
High dynamic range image HDR. Provide more dynamic range and image details, Compared with ordinary image.
You can see the whole scene from any angle.
As for conference room solution, LED display technology must deliver superior visual performance and clarity to enable efficient meeting.
With rapidly rising competition among offline retail industries, there’s never been a better time to think divergently to make your company stand out from the crowd by advertising. To help you convey an ultra-targeted brand message to a far broader public audience in a unique way.
As for the studio solution, our premium products bring your broadcasting stories to life by conveying vivid and dynamic visual performance to the audience.
| Module parameters | C1.25-16:9H | C1.45-16:9H | C1.5625-16:9H |
| LED packaging | SMD1010 black light | SMD1212 black light | SMD1212 black light |
| Physical point spacing | 1.25mm | 1.45mm | 1.5625mm |
| Resolution | 640000 points/m² | 472020 points/m² | 409600 points/m² |
| Lamp beads/IC | Domestic high-quality copper wire/high refresh rate | ||
| Light point color combination | 1R1G1B | ||
| Module resolution | 240×135 | 206×116 | 192×108 |
| Module size (width x height) (mm) | 300×168.75 | 300×168.75 | 300×168.75 |
| Cabinet resolution | 480×270 | 412×232 | 384×216 |

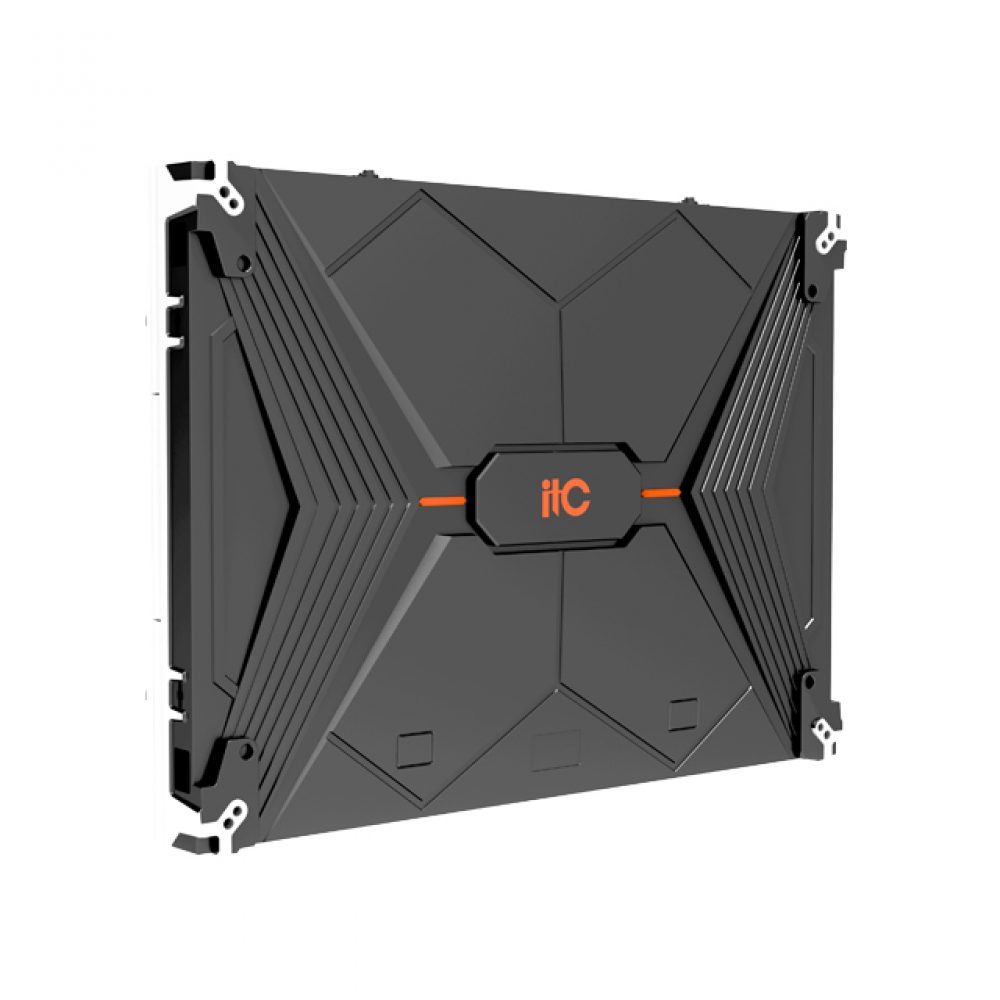

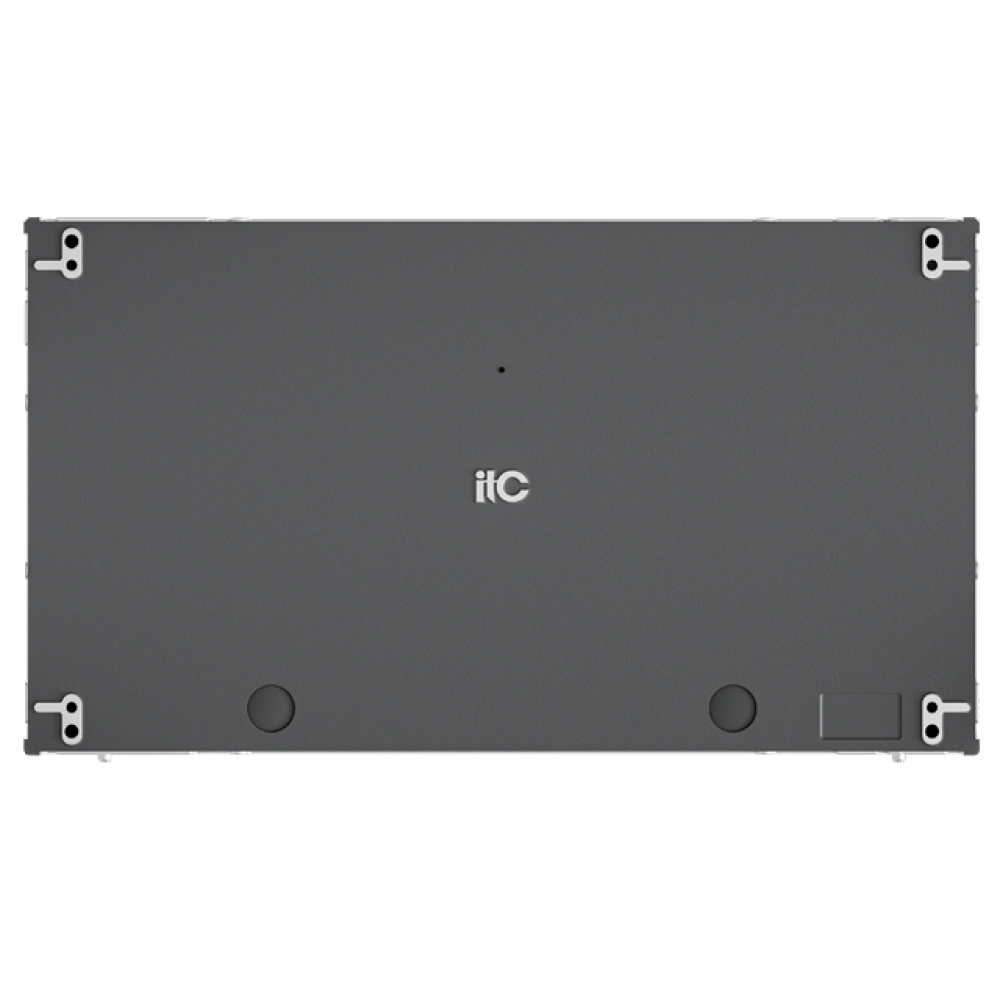

| Box size (width x height x thickness) (mm) | 600×337.5×31.5 | ||
| Box weight | ≤4Kg/pc | ||
| Operating voltage | DC+4.2V~+5V | ||
| Main parameters | |||
| Optimal viewing distance | ≥3.7m | ≥4.5m | ≥4.7m |
| Horizontal viewing angle | ≥175° | ||
| Vertical viewing angle | ≥175° | ||
| Maintenance method | Front maintenance | ||
| Control method | Synchronous control | ||
| Drive devices | Constant current | ||
| Refresh rate | ≥4200Hz | ||
| Frame rate | ≥60Hz | ||
| Scanning method | 45S | 58S | 48S |
| Brightness | 200-800cd/m² | ||
| Grayscale | 12/14/16/18bit | ||
| Contrast | ≥10000:1 | ||
| Decay rate (three years of operation) | ≤15% | ||
| Brightness adjustment method | The brightness can be adjusted from 0-100% through the accompanying software; it supports both automatic/manual modes and allows for scheduled brightness adjustments | ||
| Mean time between failures | ≥20000H | ||
| Life | ≥100000H | ||
| Noise rate | ≤1/100000 and no continuous out-of-control points | ||
| Ambient temperature | Storage -35℃~+85℃ | ||
| Operating temperature | -20℃~+60℃ | ||
| Operating voltage (AC) | 220V±10%/50Hz/60Hz | ||
| Average power consumption | ≤125W/m² at 800cd/m² (≤95W/m² at 600cd/m²) | ||
| Peak power consumption | ≤500W/m² at 800cd/m² (≤380W/m² at 600cd/m²) | ||
| Installation box specifications | Die-cast aluminum housing | ||
| Brightness uniformity | ≥99% | ||
| Protection level | IP5X | ||
