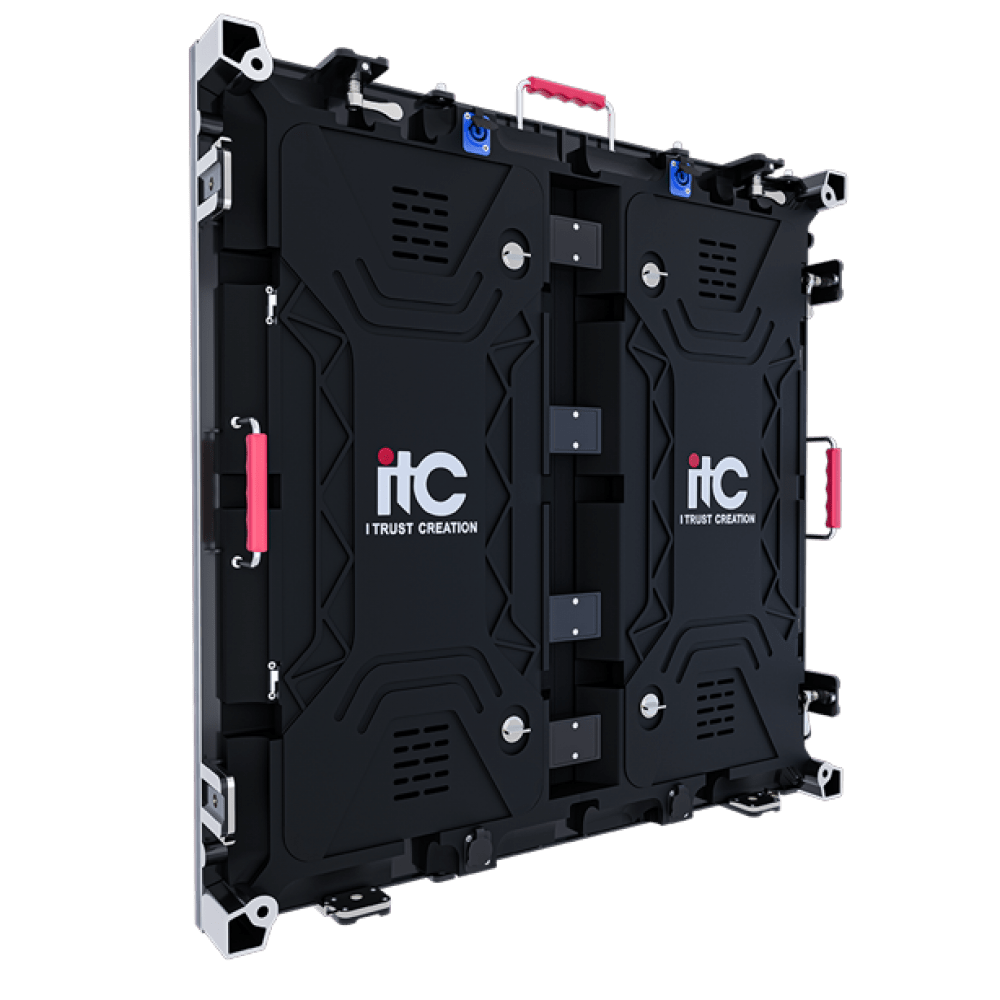

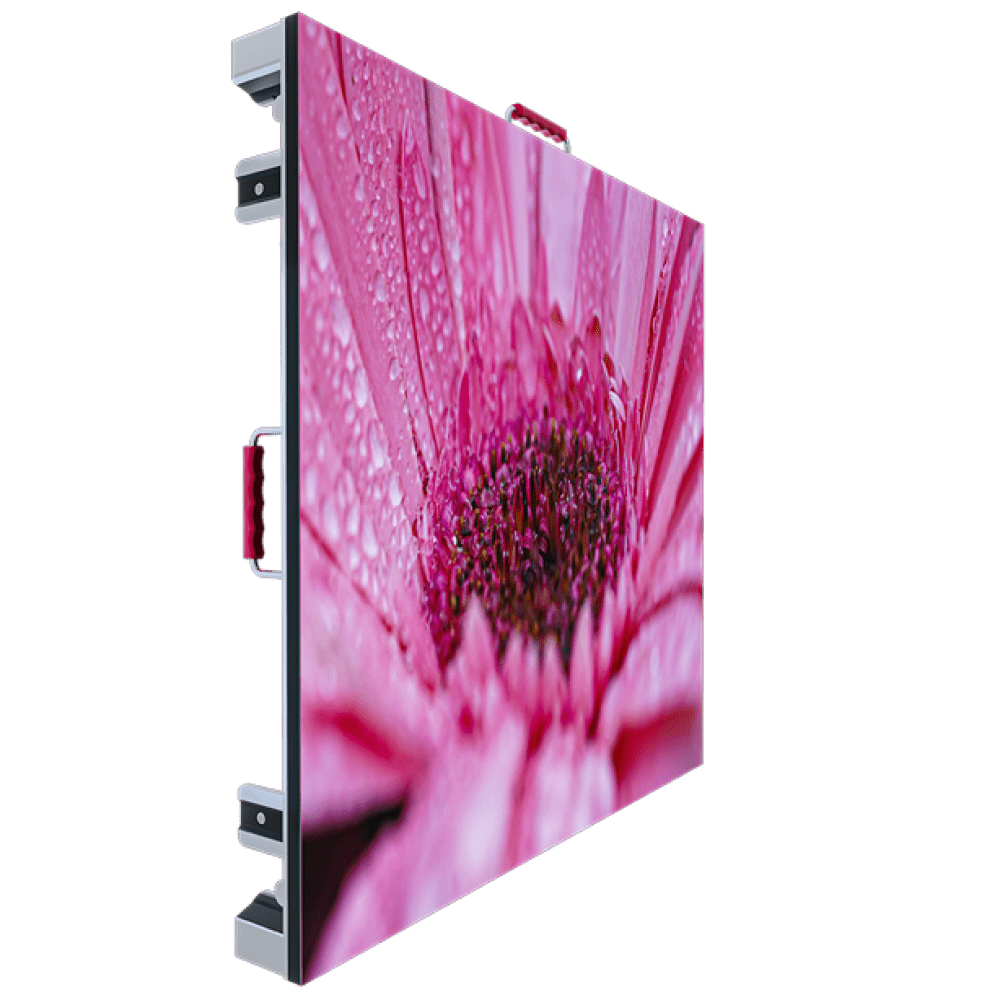

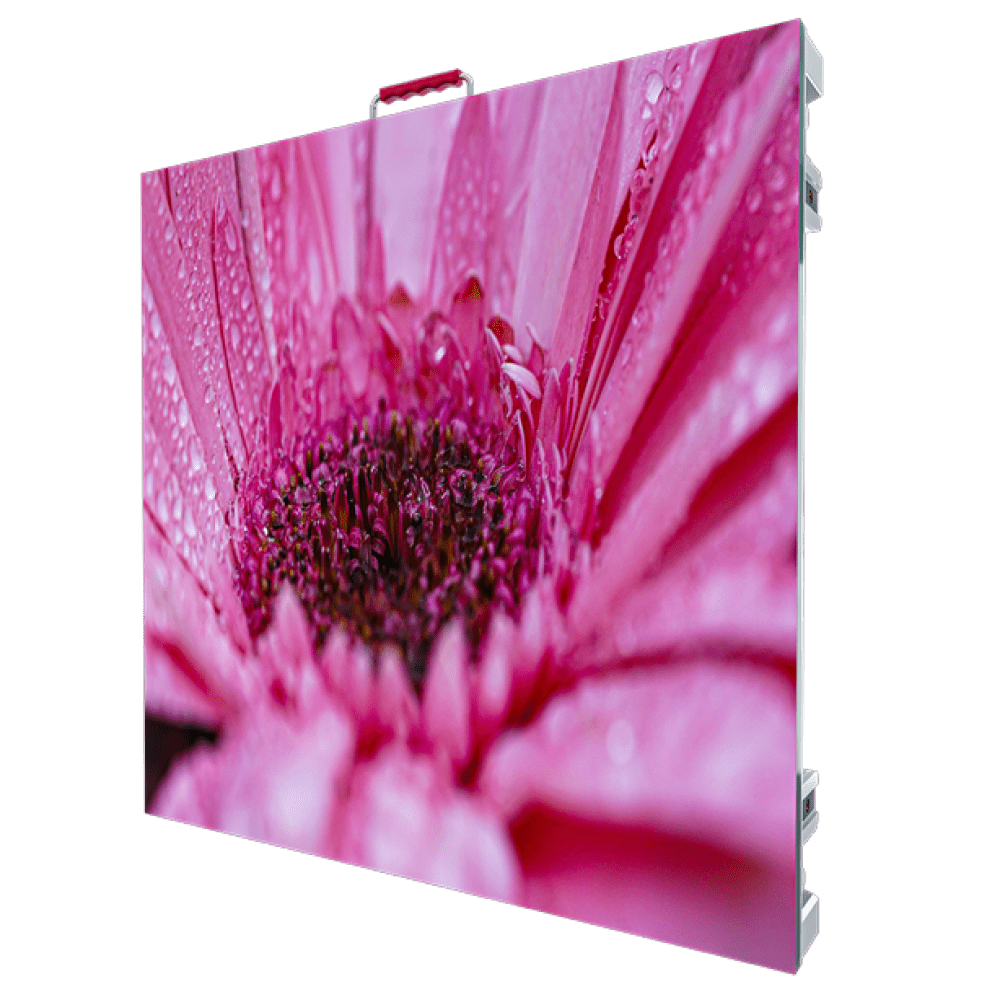

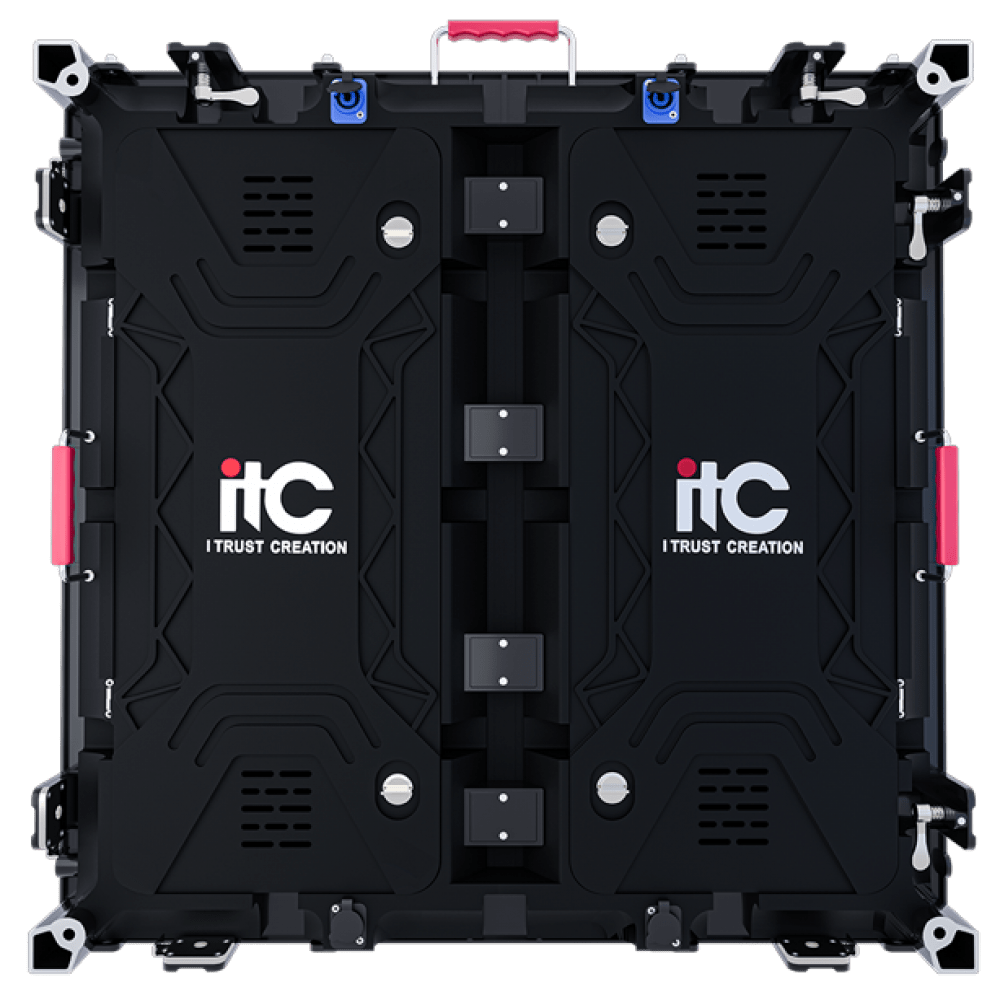

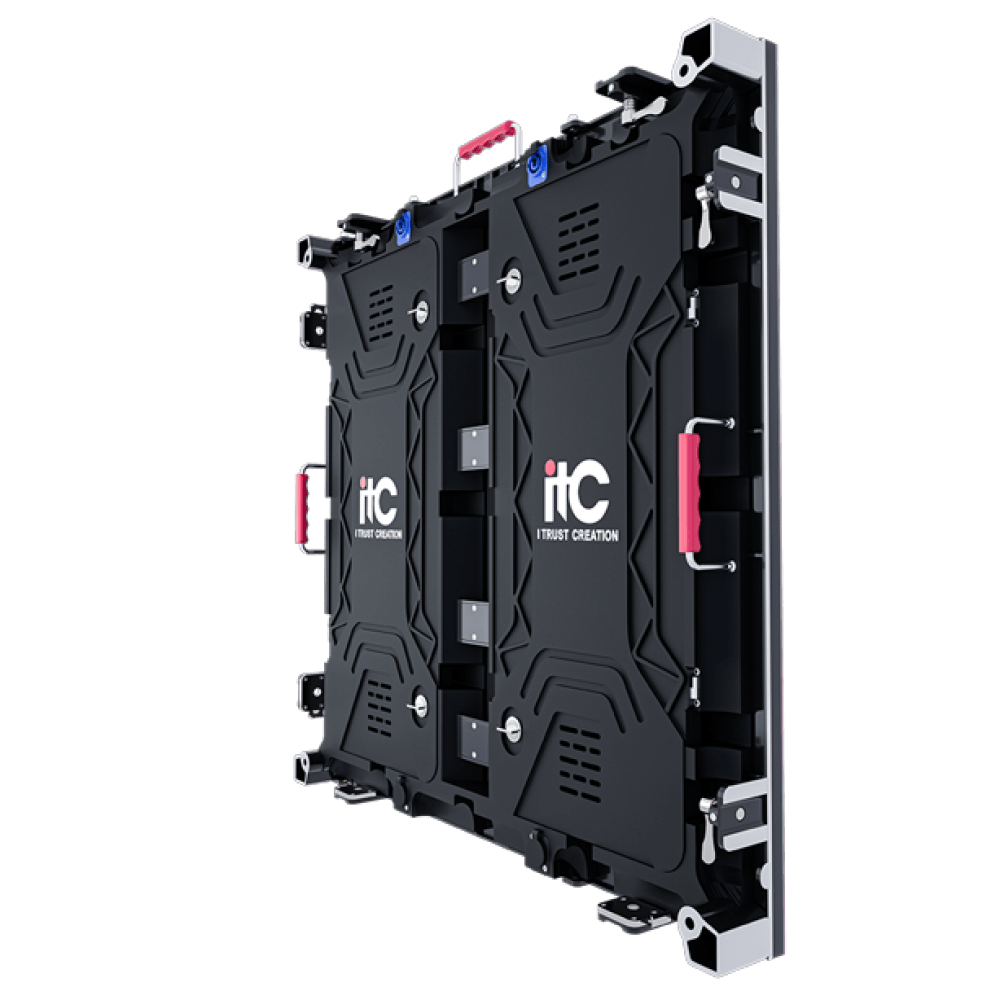

C series-Y2

C series-Y2 16:9 has seamless, perfect display, long lifetime, fast frame changing speed, high refresh, good uniformity, wide viewing angle, high grayscale, natural color reproduction, etc. It is widely used in command and dispatch center, security monitoring, video conference, exhibition, large stage, convention and exhibition center, indoor stadium, various indoor conference room display areas.



  • HDR Technology

    HDR Technology

  • Front Maintenance

    Front Maintenance

  • Extra wide viewing Angle

    Extra wide viewing Angle

  • HD Seamless Splicing

    HD Seamless Splicing

Product Parameters

Module C1.25 C1.45 C1.5625
LED encapsulation SMD1010 black light SMD1212 black light SMD1212 black light
Pixel pitch 1.25mm 1.45mm 1.5625mm
Resolution 640000 pixels/m² 472020 pixels/m² 409600 pixels/m²
Lamp beads/IC Domestic high-quality copper wire/high refresh rate
Pixel configuration 1R1G1B
Module resolution 240*135 206*116 192*108
Module size (mm) 300*168.75 300*168.75 300*168.75
Cabinet resolution 480*270 412*232 384*216
Cabinet size (mm) 600*337.5*31.5
Cabinet weight ≤4Kg/piece
Working voltage DC+4.2V
Main parameters
Best viewing distance ≥3.7m ≥4.5m ≥4.7m
Horizontal viewing angle ≥175°
Vertical viewing angle ≥175°
Maintenance method Front maintenance
Control mode Synchronous control
Drive device Constant current drive
Refresh rate ≥4200Hz
Frame rate ≥60Hz
Scanning method 45S 58S 48S
Brightness 200-800CD/m²
Grayscale 12/14/16/18bit
Contrast ≥10000:1
Attenuation rate (after working for 3 years) ≤15%
Brightness adjustment method Auto/manual: 0-100%
MTBF ≥20000H
Lifespan ≥100000H
Failed rate ≤1/100000 and no continuous failed pixels
Storage temperature -35℃~+85℃
Working temperature -20℃~+60℃
Working voltage (AC) 220V±10%/50Hz/60Hz
Average power consumption ≤125W/m² at 800CD/m² (≤95W/m² at 600CD/m²)
Maximum power consumption ≤500W/m² at 800CD/m² (≤380W/m² at 600CD/m²)
Cabinet material Die-cast aluminum cabinet
Brightness uniformity ≥99%
Protection class IP5X
