C series-Y1

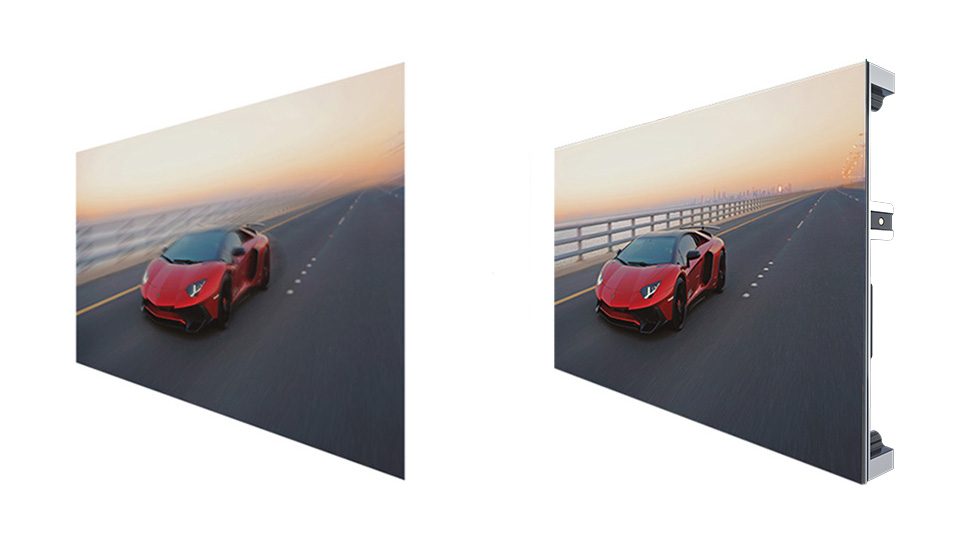

C series-Y1 4:3 LED display has seamless, perfect display, long lifetime, fast frame changing speed, high refresh, good uniformity, wide viewing angle, high grayscale, natural color reproduction etc. It is widely used in command and dispatch, security monitoring, video conferences, studio displays, and various conference display occasions.



  • HDR Technology

    HDR Technology

  • Front Maintenance

    Front Maintenance

  • Extra wide viewing Angle

    Extra wide viewing Angle

  • HD Seamless Splicing

    HD Seamless Splicing

Application Scenario

Product Parameters

Module C1.25 C1.53 C1.86 C2.0 C2.5 C3.0
LED encapsulation SMD1010 black light SMD1212 black light SMD1515 black light SMD1515 black light SMD2121 black light SMD2121 black light
Pixel pitch 1.25mm 1.53mm 1.86mm 2.0mm 2.5mm 3.076mm
Resolution 640000 pixels/m² 422500 pixels/m² 288906 pixels/m² 250000 pixels/m² 160000 pixels/m² 105625 pixels/m²
Lamp beads/IC Domestic high-quality copper wire/high refresh rate
Pixel configuration 1R1G1B
Module resolution 256*128 208*104 172*86 160*80 128*64 104*52
Module size (mm) 320*160 320*160 320*160 320*160 320*160 320*160
Cabinet resolution 512*384 416*312 344*258 320*240 256*192 208*156
Cabinet size (mm) 640*480*31.5
Cabinet weight ≤5.7Kg/piece
Working voltage DC+4.2V~+5V
Main parameters
Best viewing distance ≥3.7m ≥4.6m ≥5.5m ≥6.0m ≥7.5m ≥9.0m
Horizontal viewing angle ≥175°
Vertical viewing angle ≥175°
Maintenance method Front maintenance
Control mode Synchronous control
Drive device Constant current drive
Refresh rate ≥4200Hz
Frame rate ≥60Hz
Scanning method 64S 52S 58S 40S 32S 26S
Brightness 200-800CD/m²
Grayscale 12/14/16/18bit
Contrast ≥10000:1
Attenuation rate (after working for 3 years) ≤15%
Brightness adjustment method Auto/manual: 0-100%
MTBF ≥20000H
Lifespan ≥100000H
Failed rate ≤1/100000 and no continuous failed pixels
Storage temperature -35℃~+85℃
Working temperature -20℃~+60℃
Working voltage (AC) 220V±10%/50Hz/60Hz
Average power consumption ≤125W/m² at 800CD/m² (≤95W/m² at 600CD/m²)
Maximum power consumption ≤500W/m² at 800CD/m² (≤380W/m² at 600CD/m²)
Cabinet material Die-cast aluminum cabinet
Brightness uniformity ≥99%
Protection class IP5X
